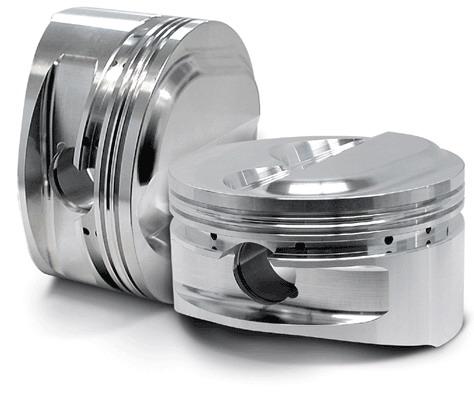

Evo 123 - CP Pistons - 4G63T Forged Piston & Ring Set (86.0mm / +1.0mm) - 6-Bolt
CP-Carrillo forged pistons and rings, 86.0mm (+1.0mm) — 6-bolt 4G63T
This is the largest of the three bore sizes we list in this set, and the size decides everything — order it only if your block is being taken 1.0mm over. That is the usual outcome when a 4G63 has scored a cylinder or has enough wear that a light hone will not clean it up: the machinist cuts to 86.0mm, the cylinders come back true and round, and you pick up a little displacement along the way. The pistons themselves are forged 2618 aluminium, which is what lets a boosted 4G63 live with the combustion temperatures and detonation risk that split factory castings. A complete ring pack, wrist pins and locks are in the box.
- Bore: 86.0mm — a +1.0mm oversize over the 85.0mm standard 4G63 bore
- Forged 2618 aluminium alloy
- CNC machined and balanced, with custom skirt and barrel profile
- Accumulator grooves and double pin oilers for forced-induction durability
- Includes CP-Carrillo high-performance ring set, wrist pins and locks
Fits:
- Mitsubishi Lancer Evolution I (CD9A, 1992–1994)
- Mitsubishi Lancer Evolution II (CE9A, 1994–1995)
- Mitsubishi Lancer Evolution III (CE9A, 1995–1996)
Machined for a 6-bolt 4G63 short block with a 21mm wrist pin — the swapped block many early Evo builds run, not the factory 7-bolt. Check with your builder which block is going in before you order this bore.
CP Pistons part #SC7202-4. Available to order; shipping shown at checkout.
