Evo 123 - Rear End Bushing Kit
Rear End Bushing Kit — Evo 1/2/3 rear suspension and differential mounts
Six SuperPro sets covering the multi-link rear of a CD9A/CE9A, including the rear differential bracket and pinion mounts that most owners never think to look at. On a car this old the diff mounts are usually the worst of the lot: soft rubber there lets the whole unit rock in the subframe, which shows up as driveline slop on and off throttle and a clunk when you pick the power back up. The arm bushings are the other half of the story — worn ones let rear toe and camber move around mid-corner, so the back of the car feels like it is quietly steering itself.

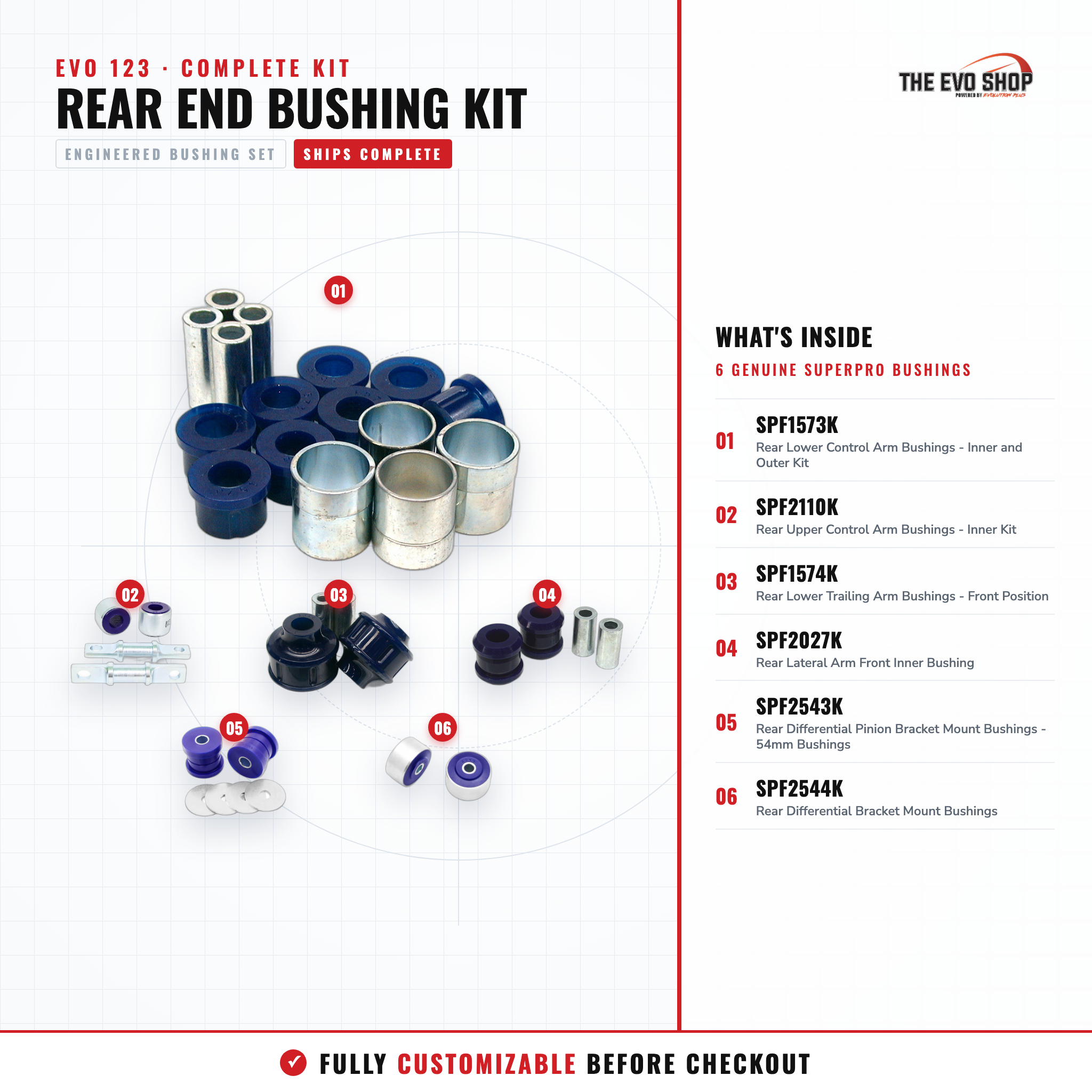

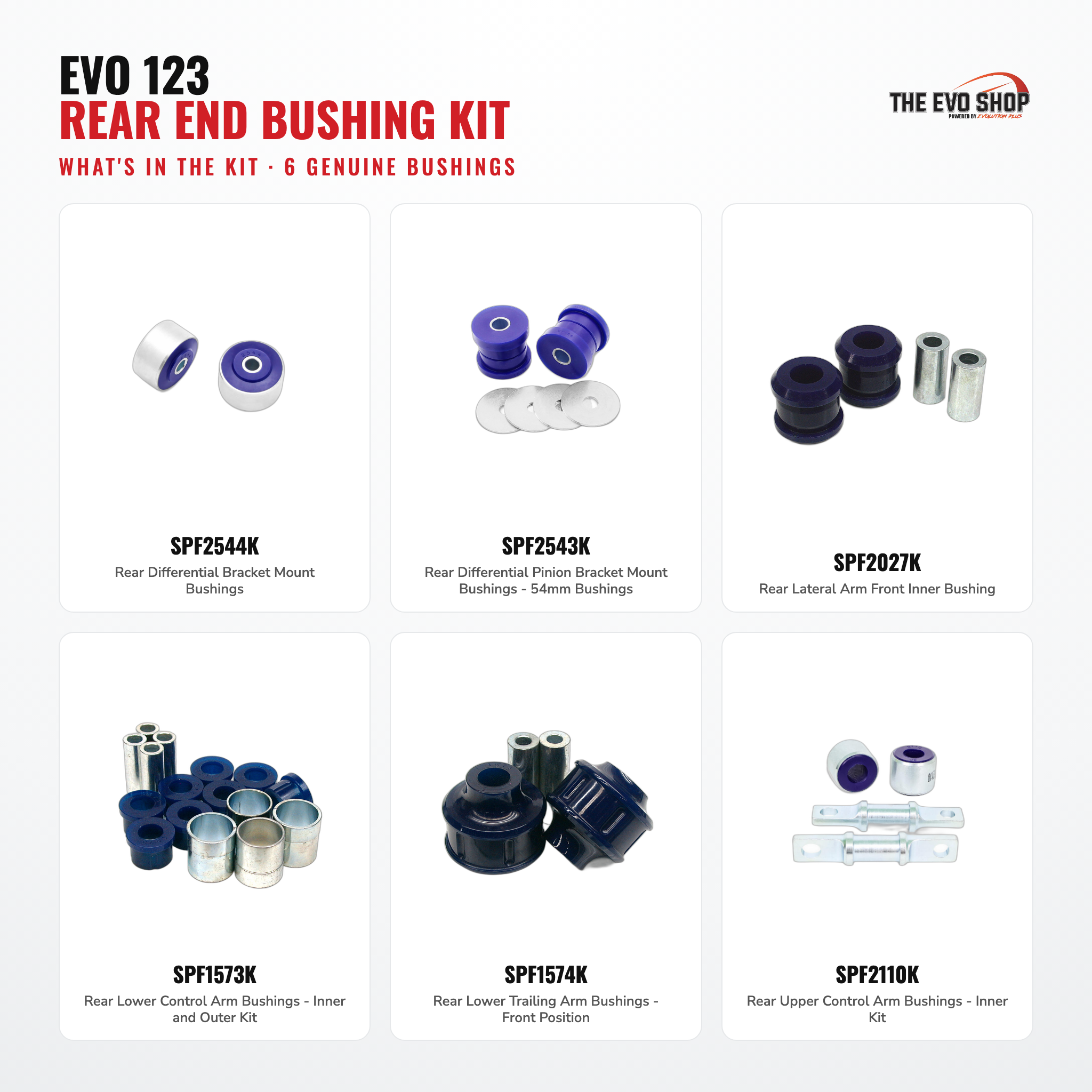

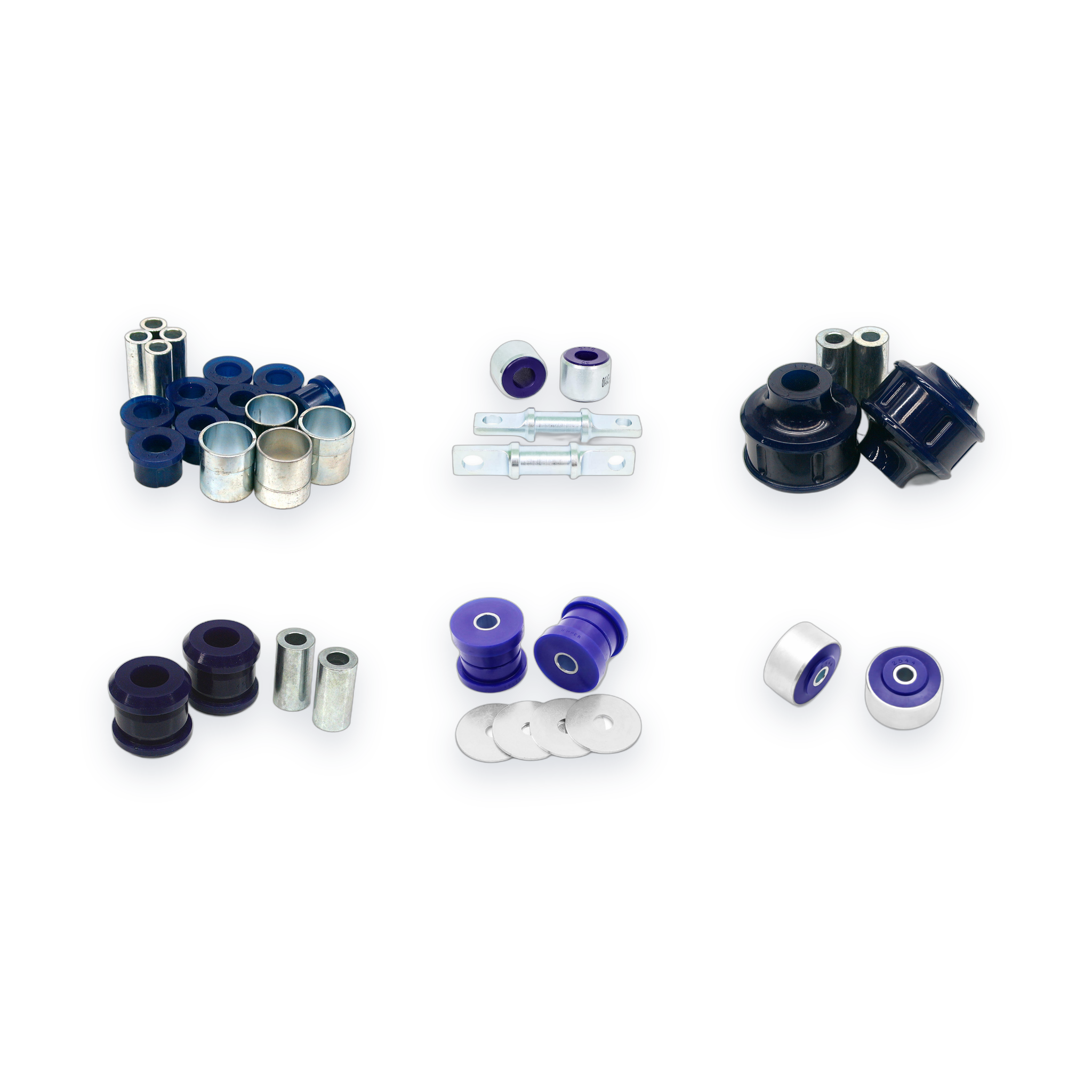

What is in the kit — 6 parts:
- SPF2544K — SuperPro rear differential bracket mount bushings
- SPF2543K — SuperPro rear differential pinion bracket mount bushings, 54mm
- SPF2027K — SuperPro rear lateral arm front inner bushing
- SPF1573K — SuperPro rear lower control arm bushings, inner and outer kit
- SPF1574K — SuperPro rear lower trailing arm bushings, front position
- SPF2110K — SuperPro rear upper control arm bushings, inner kit
Take out what you don't need: every line above has its own checkbox on this page. Already done your diff mounts? Clear them and the total comes down to match.
Fits:
- Mitsubishi Lancer Evolution I (CD9A, 1992–1994)
- Mitsubishi Lancer Evolution II (CE9A, 1994–1995)
- Mitsubishi Lancer Evolution III (CE9A, 1995–1996)
Evolution Plus Performance kit #KIT-EVO123-REAR-END-BUSHING, built from genuine SuperPro bushings. Available to order; shipping shown at checkout.
