Evo 789 - Wisefab - Rear Suspension Drop Knuckle Kit

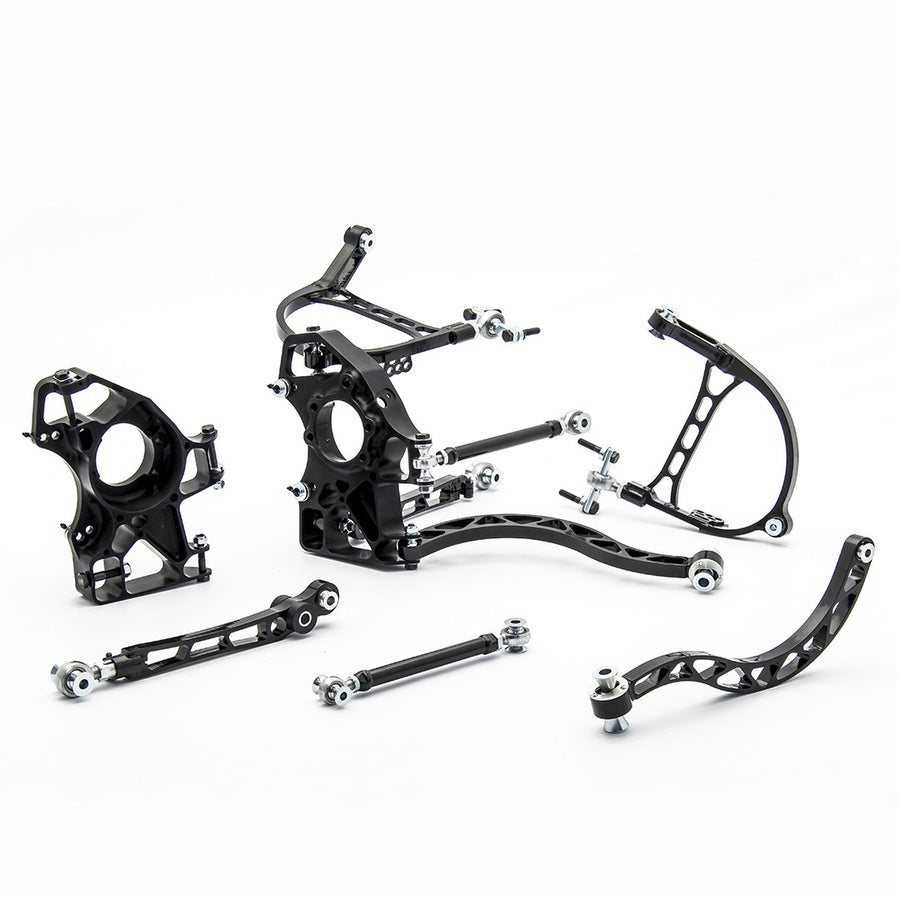

Wisefab Rear Suspension Drop Knuckle Kit for the Mitsubishi Lancer Evolution VII, VIII and IX.

The rear half of Wisefab's Evo track suspension. Lowering the car adds grip but moves the factory rear geometry out of its working range; this kit corrects it, so a lowered Evo keeps predictable handling at the limit.

The uprights are 7075-T6 aluminium billet with double shear connections, and every rear link and arm is high strength steel. Chromoly rod ends and spherical bearings replace the rubber bushings, so alignment holds under load. Together with the front kit it saves around 15 kg over the factory parts.

Adjustment

• Camber adjustment built into the upright, quick to change at the track
• Bump steer adjustment at the upright
• Three anti-roll bar drop link positions, the quickest way to tune understeer and oversteer
• Two rear caliper mounting options, for Evo VII, VIII, IX or X brakes
• Room in the upright for a larger CV joint if needed

Fitment

• Mitsubishi Lancer Evolution VII (CT9A)
• Mitsubishi Lancer Evolution VIII (CT9A)
• Mitsubishi Lancer Evolution IX (CT9A)

Before you order

• Designed for a car on coilovers.
• Minimum wheel size is 17 inch. Standard-width wheels need no body changes; wheels wider to the outside will need some bodywork for clearance under bump.
• The factory wheel speed sensor is retained.

In the kit

• Pre-set suspension links
• Knuckles with hardware
• Installation guide

Product Details

• Brand: Wisefab
• Part Number: WFE81
• Position: Rear
• Category: Suspension - Knuckle Kit
